12V 24V DC electric submersible pump for pumping oil water,fuel transfer pump,Stainless steel shell,12L/min,12 24 V volt ^Sale

Product description

Voltage: 12V/24V DC

Flow: 12L/Min

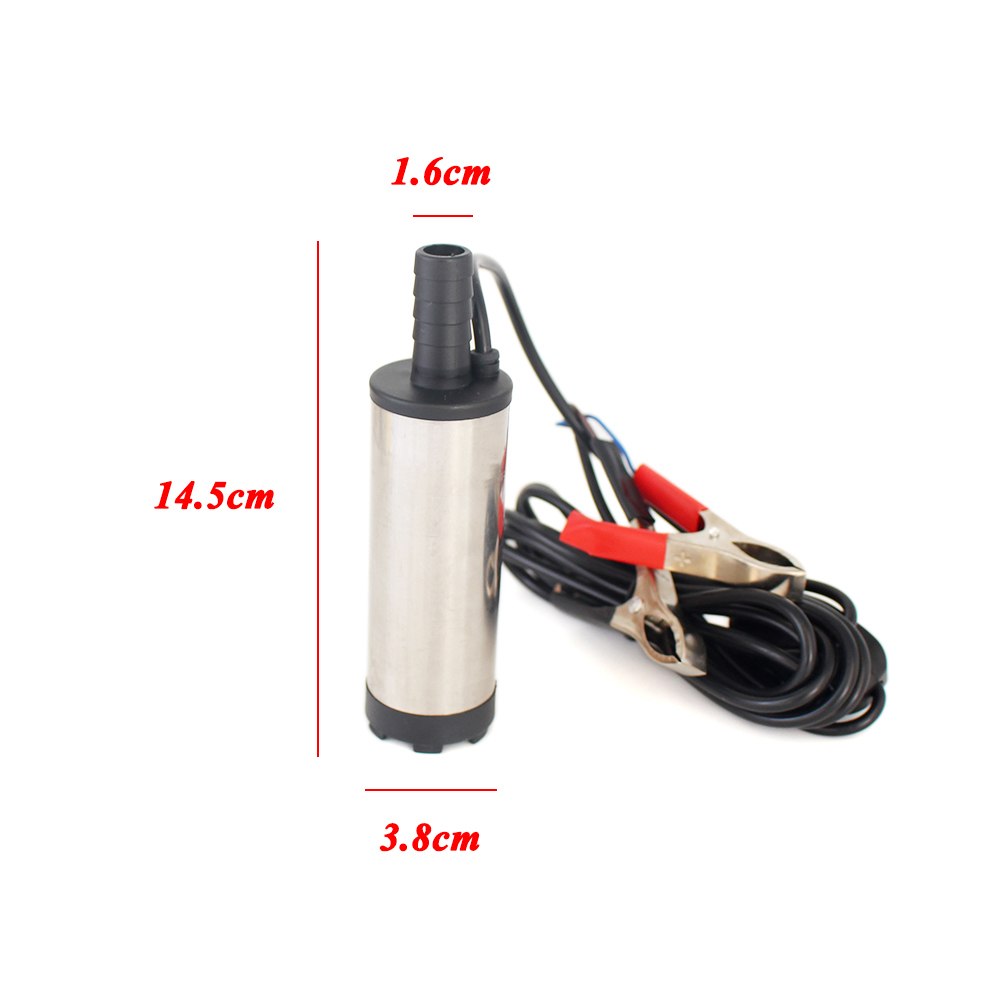

Diameter: 38MM

The tubing diameter: 16MM

Wire lenght: 3M

Motor Racing Speed:8500r/Min

Material：Stainless steel

1.Diesel pump operated by DC12v/24v motor,full sealed device

2.The motor is insulated to the shell

3.When it works,first should put clean diesel pump in the middle of diesel bucket,does not allow empty load aperation

4.Pay attention to the load capacity of bucket when the pump is running,do not exceed load capacity line

5.The pump is strictly prohibited pumping gasoline,alcohol and other flammable liquids.

6.The pump mainly smoke diesel,flow rate:12L/Min.

7.The outer diameter 38mm.

8.The maximum Oil-out diameter is 16mm

9.The oil outlet hose is self-provided

Remark:Do not make change the anode and cathode of battery clamp
