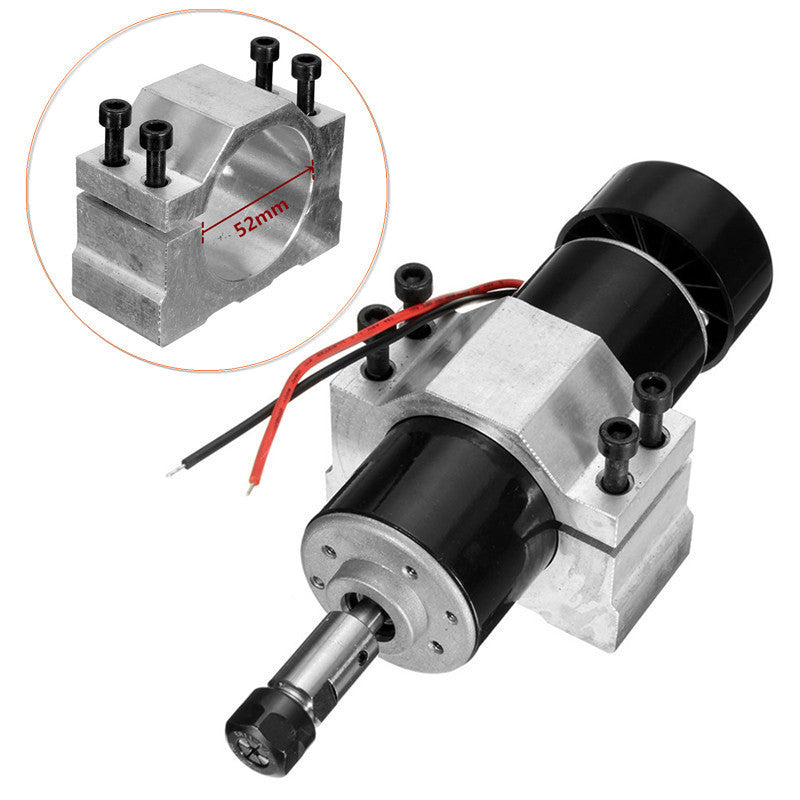

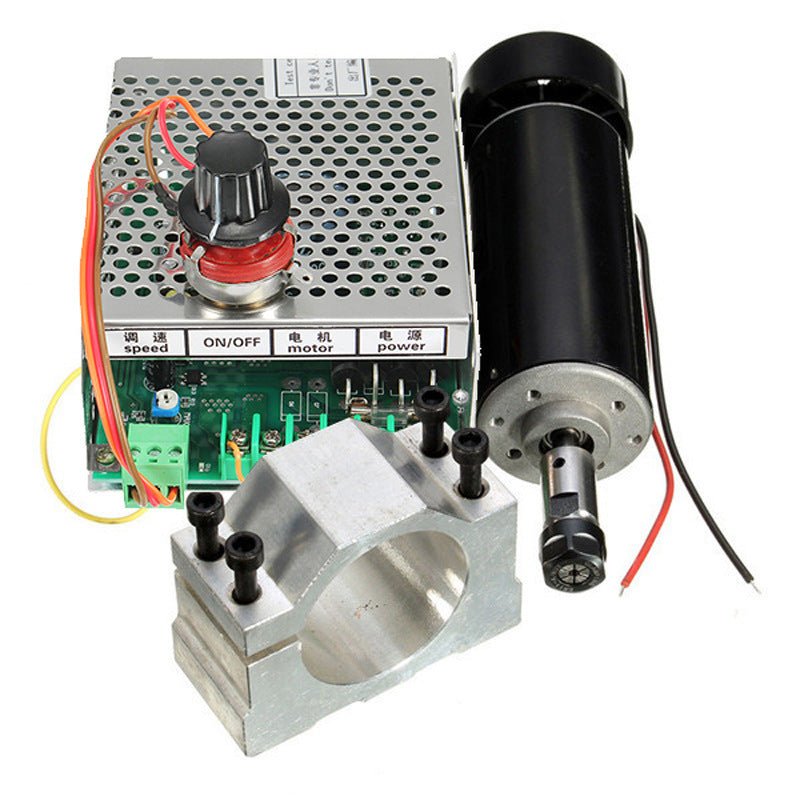

Spindle parameters:
Working voltage: 12-100vdc
Idle speed: 2000-12000rpm
Power: 500W
Torque: 0.5nm
Insulation resistance: > 2 megohm
Insulation dielectric strength: 400V

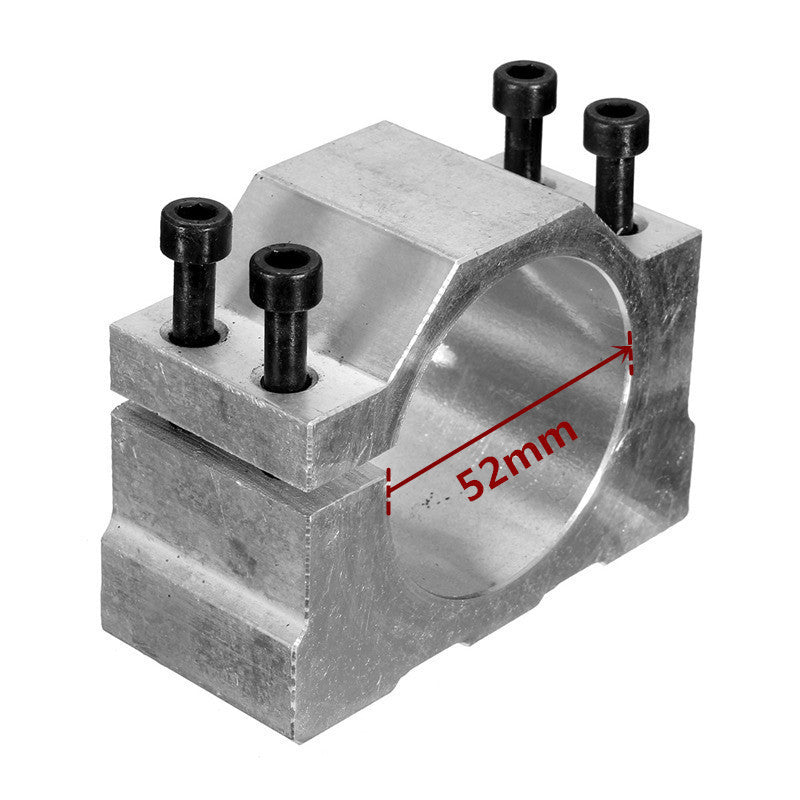

Diameter: 52mm
Chuck part length: 45mm
The diameter of chuck part is 16mm
Total length of motor: About 190mm
The radial runout of the spindle is 0.01-0.03 with high accuracy
Can be used for solid wood PCB engraving drilling and so on

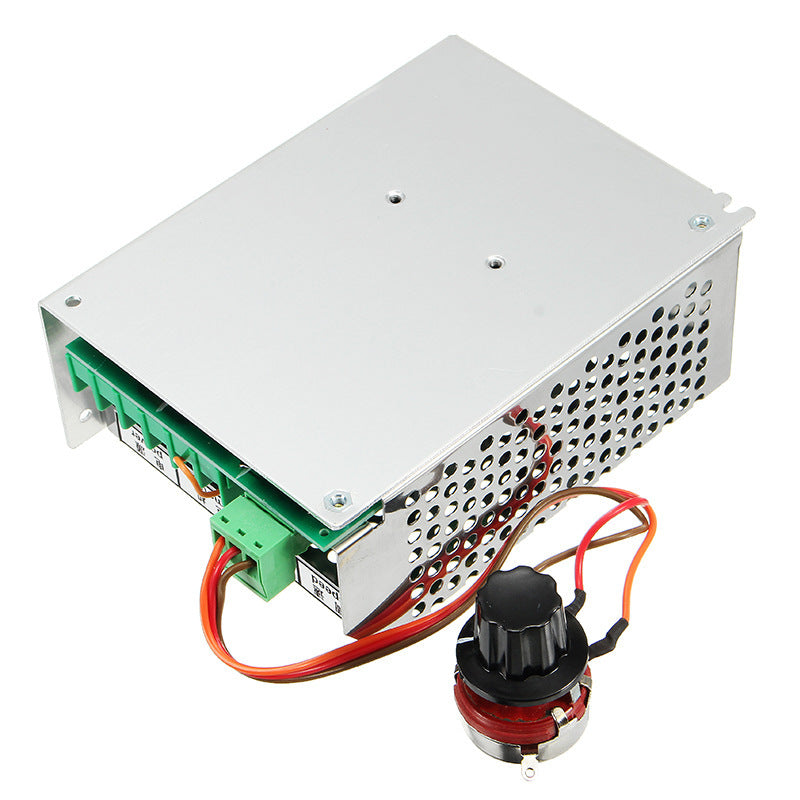

Detailed technical parameters of governor:
1. Input voltage ac110-ac220v ± 10% global voltage 50 / 60Hz
2. Current limiting: 6A
2. Suitable motor power: 50W ~ 500W
3. Armature output voltage: dc0 ～ 100V adjustable
4. Overall dimension: length 130mm × width 100mm × height 51mm
5. Connection mode: terminal type (convenient and fast)
