Product information:
Technical Parameters:
* Power: 1/6 HP
* Voltage/Frequency: 220–240 V/50 Hz, 110–120 V/60 Hz
* Automatic On/Off: Stops at 4 BAR (57 PSI), restarts at 3 BAR (47 PSI)
* Overpressure Protection Setting: 6 BAR (86 PSI)
* Flow Rate: 20–23 L/min
* Pressure Adjustment Range: 0.2–6 BAR
* Air Tank Capacity: 3.0 L
* External Dimensions: 310 × 135 × 310 mm
Product Features:
1. Air tank: Stabilizes air pressure and eliminates pulsation.
2. Cylinder-based air generation with high output, suitable for multiple tools.
3. Oil-free piston design ensures clean, contamination-free air supply.
4. Equipped with an oil-water separator, adjustable working pressure, and a pressure gauge.
5. Dual-pressure functionality with two-stage automatic control switch:
1) Automatic on/off mode for standard printing applications.
2) Continuous operation mode for temporary use with high-pressure pneumatic tools.
6. Automatic pressure relief system enables zero-pressure startup, enhancing motor durability.
7. Automatic shutdown protection in case of motor overheating; the unit automatically resets after cooling.
8. Built-in safety features for the air tank, including overpressure protection, ensuring reliable operation.
9. Compatible with various pneumatic tools, such as small nail guns and spray guns.
10. Silent operation with noise levels below 47 dB.
Packing list:
1* Art printing pump

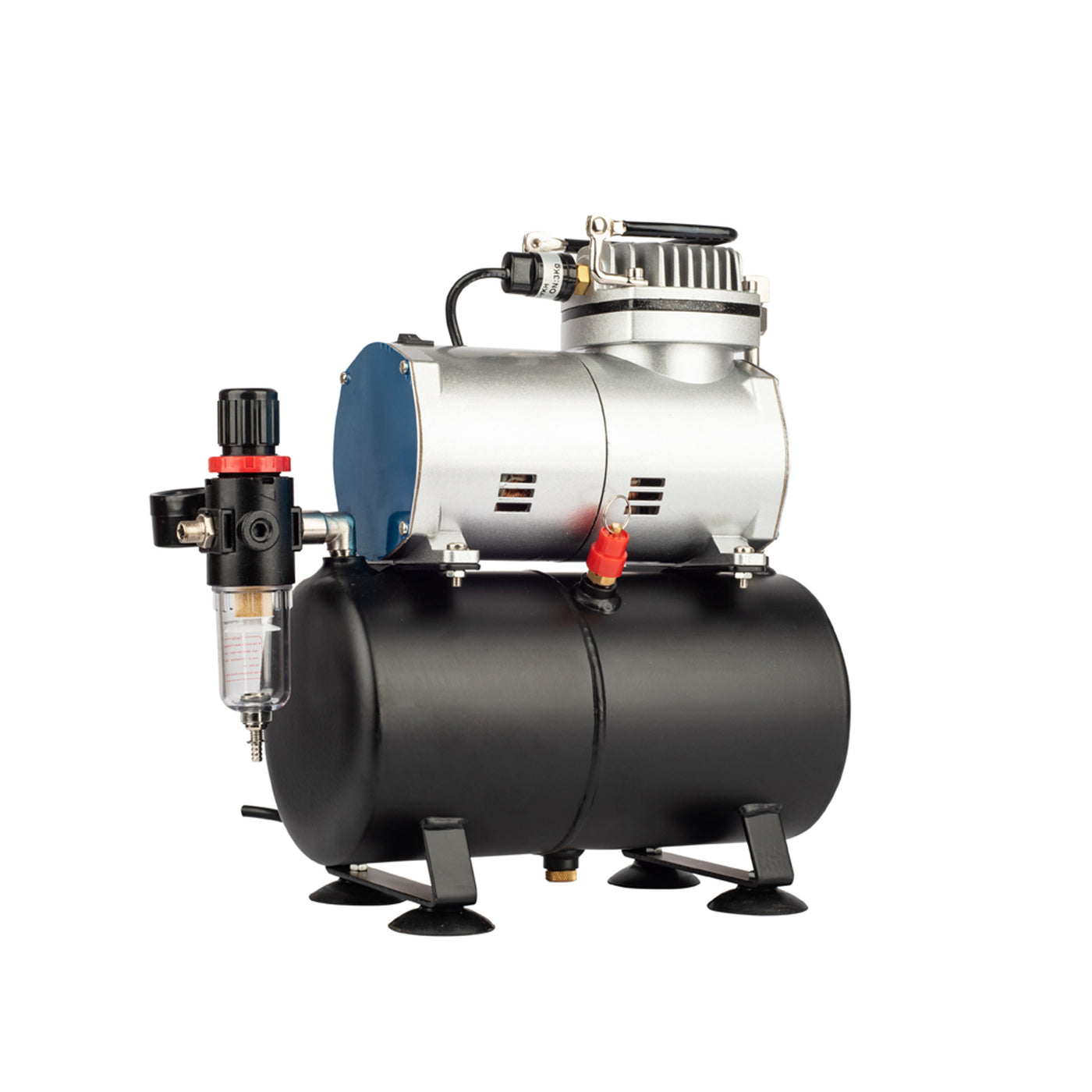

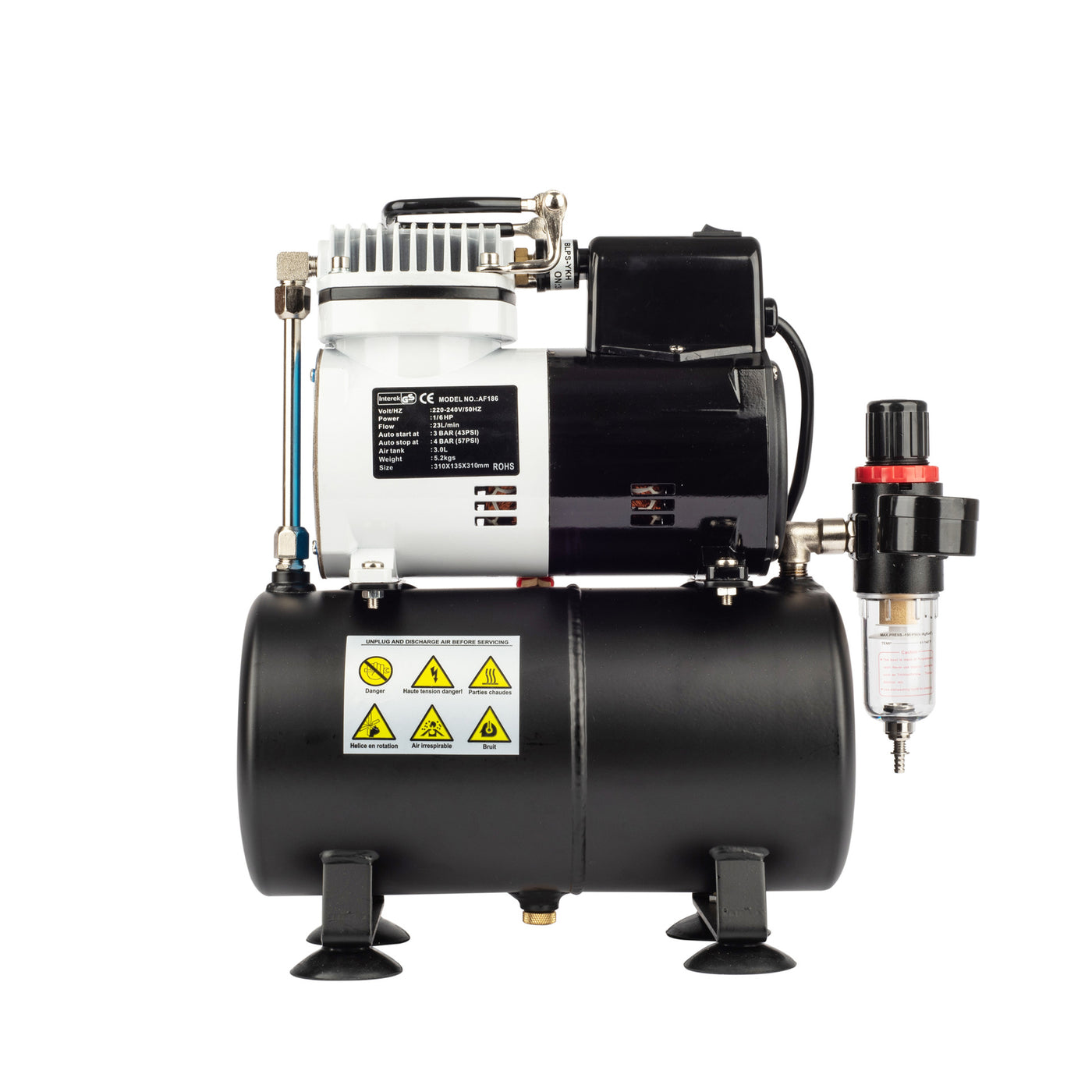

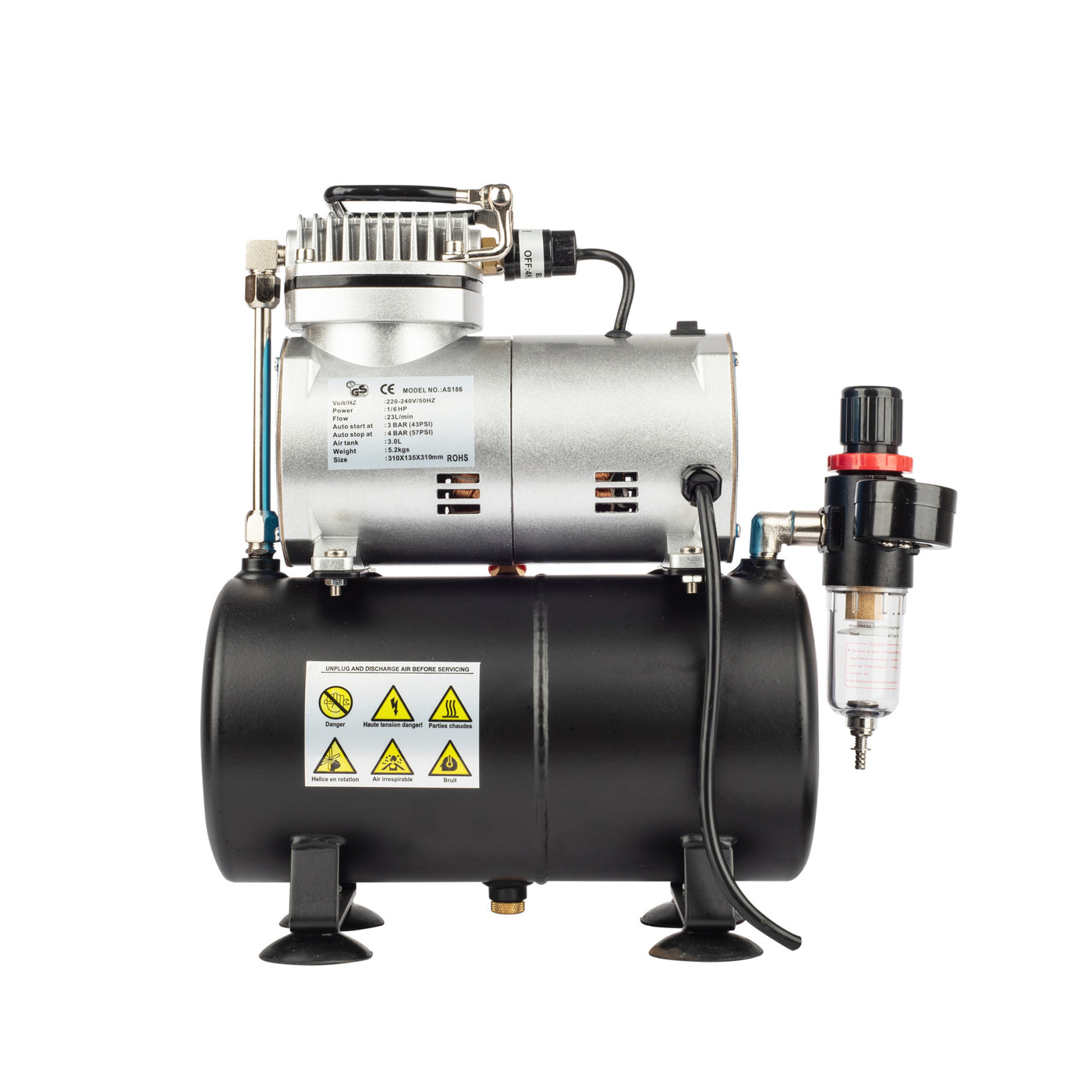

Product Image:
